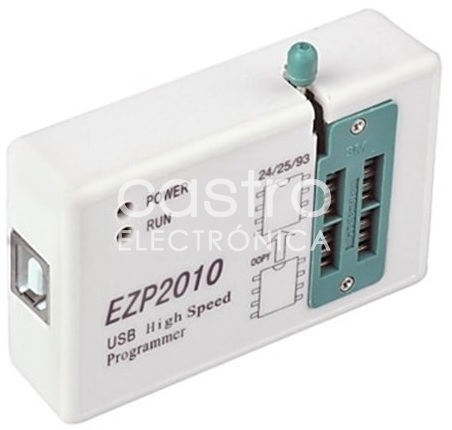

Programador Universal USB de IC?s Eprom?s

– Suporta circuitos integrados dos seguintes tipos: 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, 95 EEPROM
– Formato pequeno, peso leve, baixo consumo
– Compat?vel com Windows 2000, XP, Vista, Win7 de 32 bits e tamb?m Windows XP 64 bits, VISTA 64 bits, Win7 64 bits
– Interface USB 2.0, velocidade USB 12Mbps
– Muito r?pido e eficiente
– Detec??o autom?tica de modelos de chip SPI
– Sele??o autom?tica da tensão de alimentação
– C?pia autom?tica de chip offline
– Ler e escrever chips de bios

PRODUTO CONTEM:
– 1 x Programador USB SPI
– 1 x Cabo USB 2.0 de 1,0 m
– 1 x Disco de software (manual e software em ingl?s)
– 1 x Adaptador de energia
– 2 x Placa conversora multifuncional (SOIC8, SOP8, SOIC16, SOP16)

Lista de dispositivos suportados:

25xx SPI FLASH

? AMIC: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P,
A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032

? ATMEL: AT25F512, AT25F512A, AT25F512B, AT25F1024,
AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A,
AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161,
AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321,
AT25DF641

? EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10,
EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40,
EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80,
EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16,
EN25B32, EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64,
EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128

? ES: ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80,
ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32

? ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A,
F25L16PA, F25L32PA, F25L32QA

? MXIC: MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L8006
MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D,
MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D,
MX25L3237D, MX25L6405D, MX25L12805D

? NEXFLASH: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16,
NX25P32

? PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040,
PM25LV080B, PM25LV016B

? SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080,
SA25F160, SA25F320

? SPANSION: S25FL004A, S25FL008A, S25FL016A, S25FL032A,
S25FL064A

? SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A,
SST25VF020, SST25VF020A, SST25VF040, SST25VF040A,
SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B,
SST25VF064C

? ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40,
M25PE40, M25P80, M25PE80, M25PX80, M25P16, M25PE16,
M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128

? WINBOND: W25P10, W25X10, W25X10A, W25X10AL, W25X10L,
W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40,
W25X40, W25X40A, W25X40AL, W25X40L, W25P80, W25X80,
W25X80A, W25X80AL, W25X80L, W25P16, W25X16, W25P32,
W25X32, W25X64, W25Q16, W25Q32, W25Q40, W25Q64, W25Q80,
W25Q128

24xx EEPROM

? ATMEL: AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A,
AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A,
AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A,
AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A,
AT24C128B, AT24C256, AT24C256A, AT24C256B, AT24C512,
AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

? CATALYST: CAT24C01, CAT24WC01, CAT24C02, CAT24WC02,
CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16,
CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64,
CAT24C128, CAT24WC128, CAT24C256, CAT24WC256, CAT24C512,
CAT24WC512, CAT24C1024, CAT24WC1024

? COMMON: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V,
24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V,
24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5V, 24C128 3V,
24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024
3V, 24C1024 5V

? FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L,
FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L,
FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L,
FM24C1024L

? HOLTEK: HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04,
HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32,
HT24LC32, HT24C64, HT24LC64, HT24C128, HT24LC128, HT24C256,
HT24LC256, HT24C512, HT24C1024

? ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32,
IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

? MICROCHIP: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C,
24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04,
24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16,
24LC16B, 24AA32, 24LC32, 24AA64, 24FC64, 24LC64, 24AA128,
24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512,
24FC512, 24LC512, 24AA1024

? NSC: NSC24C02, NSC24C02L, NSC24C64

? RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16,
FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

? ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04,
BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32,
BR24C64, BR24L64

? ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32,
ST24C64

? XICOR: X24C01, X24C02, X24C04, X24C08, X24C16

93xx EEPROM

? AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

? ATC:ATC93C46, ATC93LC46(16bit), ATC93LC46(16bit)-SOP8,
ATC93LC46(8bit), ATC93LC46(8bit)-SOP8, ATC93C56,
ATC93LC56(16bit), ATC93LC56(16bit)-SOP8, ATC93LC56(8bit),
ATC93LC56(8bit)-SOP8, ATC93C66, ATC93LC66(16bit),
ATC93LC66(16bit)-SOP8, ATC93LC66(8bit), ATC93LC66(8bit)-SOP8

? ATMEL: AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit),
AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit),
AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit)-SOP8,
AT93C57(16bit), AT93C57(16bit)-SOP8, AT93C57(8bit),
AT93C57(8bit)-SOP8, AT93C66(16bit), AT93C66(16bit)-SOP8,
AT93C66(8bit), AT93C66(8bit)-SOP8, AT93C86(16bit),
AT93C86(16bit)-SOP8, AT93C86(8bit), AT93C86(8bit)-SOP8

? CATALYST:CAT93C46(16bit), CAT93C46(8bit), CAT93C46A,
CAT93C46I, CAT93C56(16bit), CAT93C56(8bit), CAT93C56A,
CAT93C57(16bit), CAT93C57(16bit)-SOP8, CAT93C66(16bit),
CAT93C66(8bit), CAT93C66A, CAT93C86(16bit), CAT93C86(8bit)

? COMMON: 93C46(16bit), 93C46(8bit), 93C56(16bit), 93C56(8bit),
93C66(16bit), 93C66(8bit), 93C86(16bit), 93C86(8bit)

? EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56,
XL93LC56, XL93C66, XL93LC66

? FAIRCHILD: FM93C06AM8(16bit), FM93C06AM8(8bit), FM93C06M8,
FM93C06N, FM93C46AM8(16bit), FM93C46AM8(8bit),
FM93C46AN(16bit), FM93C46AN(8bit), FM93CS46(16bit),
FM93C56AN(16bit), FM93C56AN(8bit), FM93CS56(16bit),
FM93C66AM8(16bit), FM93C66AM8(8bit), FM93C66AN(16bit),
FM93C66AN(8bit), FM93C66B, FM93C66M8(16bit),
FM93C66MT8(16bit), FM93C66N(16bit), FM93CS66(16bit),
FM93C86AM8(16bit), FM93C86AM8(8bit), FM93C86AN(16bit),
FM93C86AN(8bit)

? HOLTEK:HT93LC46A(16bit), HT93LC46A(8bit), HT93LC56A(16bit),
HT93LC56A(8bit), HT93LC66A(16bit), HT93LC66A(8bit)

? ICT: ICT93C46(16bit), ICT93C46(8bit), ICT93C56(16bit), ICT93C56(8bit),
ICT93C66(16bit), ICT93C66(8bit)

? ISSI: IS93C46(16bit), IS93C56(16bit), IS93C66(16bit)

? MICROCHIP: 93C06(16bit), 93C06(16bit)-SOP8, 93AA46(16bit),
93AA46(8bit), 93AA46(8bit)-SOP8, 93C46(16bit), 93C46(16bit)-SOP8,
93C46A, 93C46B, 93LC46(16bit), 93LC46(16bit)-SOP8, 93LC46(8bit),
93LC46(8bit)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8,
93AA56(16bit), 93AA56(8bit), 93AA56(8bit)-SOP8, 93C56(16bit),
93C56(16bit)-SOP8, 93C56(8bit), 93C56(8bit)-SOP8, 93C56A,
93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56(16bit),
93LC56(16bit)-SOP8, 93LC56(8bit), 93LC56(8bit)-SOP8, 93LC56A,
93LC56B, 93LC56B-SOP8, 93AA66(16bit), 93AA66(8bit),
93AA66(8bit)-SOP8, 93C66(16bit), 93C66(16bit)-SOP8, 93C66(8bit),
93C66(8bit)-SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8,
93LC66(16bit), 93LC66(16bit)-SOP8, 93LC66(8bit), 93LC66(8bit)-SOP8,
93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76(16bit), 93AA76(8bit),
93C76(16bit), 93C76(8bit), 93LC76(16bit), 93LC76(8bit), 93LC76A,
93LC76B, 93AA86(16bit), 93AA86(8bit), 93C86(16bit), 93C86(8bit),
93LC86(16bit), 93LC86(8bit), 93LC86A, 93LC86B

? NSC: NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46,
NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66,
NSC93CS66, NSC93C86

? ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF,
BR93LC66, BR93LC66RF

? ST:ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R,
M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56,
M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W,
M93S56W-SOP8, ST93C56, M93S66, M93S66-SOP8, M93S66R,
M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

25xx EEPROM

? ATMEL: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320,
AT25640, AT25128, AT25256, AT25512

? CATALYST: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U,
CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S,
CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U,CAT25C05P,
CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U,
CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S,
CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P,
CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S,
CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S,
CAT25C256P, CAT25C256S

? COMMON: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128,
25256, 25512

? MICROCHIP: 25AA040, 25C040, 25LC040, 25AA080, 25C080,
25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320,
25AA640, 25C640, 25LC640

? RAMTRON: FM25C160, FM25640, FM25CL64

? ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04,
ST25C08, ST25W08, ST25C16, ST25W16

? TI: TI2532, TI2532A, TI2564

? XICOR: XC25010, XC25020, XC25040, XC
