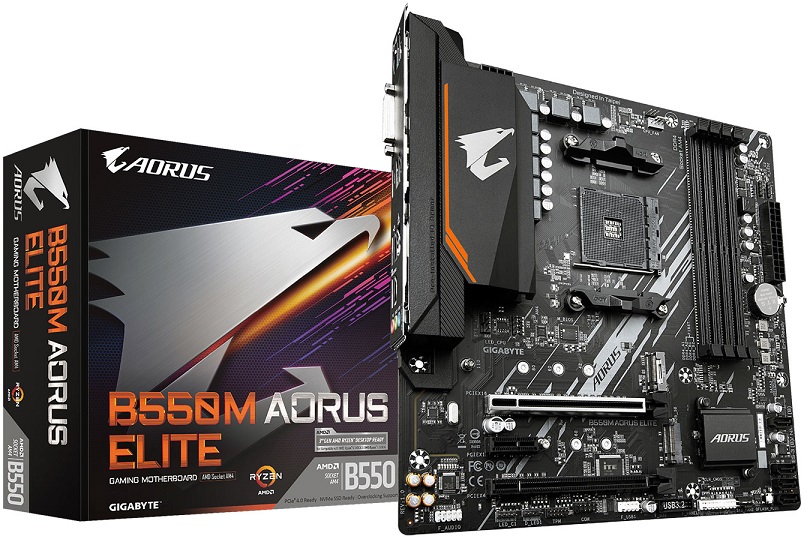

Motherboard Micro-ATX B550M Aorus Elite (rev. 1.0) SktAM4 – GIGABYTE

Descri??o
Realtek 8118
O Realtek 8118 LAN ? um chip de rede de alto desempenho para jogadores com aloca??o autom?tica de largura de banda para garantir a maior prioridade de rede do jogo ou aplica??o. Pode fornecer aos utilizadores recursos mais abrangentes e a experi?ncia na Internet mais r?pida e suave.

Smart Fan 5
Com o Smart Fan 5, os utilizadores podem garantir que seus PCs para jogos possam manter seu desempenho enquanto se mant?m frescos. O Smart Fan 5 permite que os utilizadores troquem seus cabe?alhos para refletir diferentes sensores t?rmicos em diferentes locais da motherboard. Al?m disso, com o Smart Fan 5, foram introduzidos mais conectores h?bridos que suportam os modos PWM e Voltage para tornar a motherboard mais amig?vel ao resfriamento de l?quidos.

Stop Ventoinhas
Alcance o sil?ncio das ventoinhas. Com Stop Ventoinhas, mapeie qualquer ventoinha para parar completamente quando a temperatura cair abaixo de um limite especificado. Qual ventilador para, com base nas leituras de qual sensor e a que temperatura – tudo isso pode ser personalizado ao seu gosto.

Carater?sticas
Processador:
– Suporta AMD Socket AM4, suporte para 3? Gera??o AMD Ryzen? / Nova Gera??o AMD Ryzen? com gr?ficos Radeon? Graphics

Chipset:
– AMD B550

Mem?ria RAM:
– Suporta 4 x DDR4 DIMM sockets at? 128 GB
– 3? Gera??o AMD Ryzen?
– Suporta os seguintes m?dulos de mem?ria DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
– Nova Gera??o AMD Ryzen? com gr?ficos Radeon? Graphics
– Suporta os seguintes m?dulos de mem?ria DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
– Arquitetura de mem?ria Dual Channel
– Suporta m?dulos de mem?ria ECC Un-buffered DIMM 1Rx8/2Rx8
– Suporta m?dulos de mem?ria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
– Suporta m?dulos de mem?ria Extreme Memory Profile (XMP)

Slots de Expans?o:
– 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– 3rd Generation AMD Ryzen? processors support PCIe 4.0 x16 mode
– 3rd Generation AMD Ryzen? with Radeon? Graphics processors support PCIe 3.0 x16 mode
– 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
– Supporting PCIe 3.0 x4 mode
– 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode

Armazenamento:
– 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– 3rd Generation AMD Ryzen? processors support SATA and PCIe 4.0 x4/x2 SSDs
– 3rd Generation AMD Ryzen? with Radeon? Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
– 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
– Supporting SATA and PCIe 3.0 x2 SSDs
– 4 x SATA 6Gb/s connectors, integrated in the Chipset:
– Suporte para RAID 0, RAID 1, RAID 5, and RAID 10

LAN:
– Realtek? GbE LAN chip (1000 Mbit/100 Mbit)

?udio:
– Realtek? ALC887 codec
– High Definition Audio
– 2/4/5.1/7.1-channel

Portas USB:
– CPU:
– 4 x USB 3.2 Gen 1 ports on the back panel
– Chipset:
– 2 x USB 3.2 Gen 1 ports available through the internal USB header
– 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Conectores I/O:
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 1 x CPU fan header
– 2 x system fan headers
– 2 x addressable LED strip headers
– 2 x RGB LED strip headers
– 1 x CPU cooler LED strip/RGB LED strip header
– 2 x M.2 Socket 3 connectors
– 4 x SATA 6Gb/s connectors
– 1 x front panel header
– 1 x front panel audio header
– 1 x USB 3.2 Gen 1 header
– 1 x USB 2.0/1.1 header
– 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
– 1 x serial port header
– 1 x Clear CMOS jumper
– 1 x Q-Flash Plus button

Portas Painel Traseiro:
– 1 x PS/2 keyboard/mouse port
– 1 x DVI-D port
– 1 x HDMI port
– 4 x USB 3.2 Gen 1 ports
– 4 x USB 2.0/1.1 ports
– 1 x RJ-45 port
– 3 x audio jacks

Dimens?es:
– Formato Micro ATX , 24.4cm x 24.4cm
